Introduction

Over the years web frameworks of varying complexity have been developed.

Among these are micro frameworks such as Javascripts's Express, Ruby's Sinatra, & Python's Flask.

They're designed to be minimal & flexible compared to more fully featured frameworks like NestJS, Ruby on Rails, Django, enabling developers to build & ship products much more quickly.

In this post we'll take a look at Flask.

1. Create project directory

mkdir system_design_flask
cd system_design_flask

2. Setup virtual environment

python3 -m venv venv

3. Source environment

source venv/bin/activate

4. Check environment is sourced

env | grep VIRTUAL_ENV

You should see something like the following:

$ env | grep VIRTUAL_ENV
VIRTUAL_ENV_DISABLE_PROMPT=1
VIRTUAL_ENV=/Users/future/Documents/work/system_design_flask/venv

5. Install Flask

pip3 install flask

6. Create entrypoint file containing source code

touch app.py

7. Create single endpoint and run app

from flask import Flask

app = Flask(__name__)

@app.route("/")
def home():
    return "<p>Hello World from Flask!</p>"

if __name__ == '__main__':
    app.run(host='0.0.0.0', debug=True)

8. Run project from command line

flask run

You should not see something like the following:

$ flask run
 * Debug mode: off
WARNING: This is a development server. Do not use it in a production deployment. Use a production WSGI server instead.
 * Running on http://127.0.0.1:5000
Press CTRL+C to quit
127.0.0.1 - - [28/Apr/2025 14:07:36] "GET / HTTP/1.1" 200 -

9. Check App works

Open your browser and navigate to the URL printed in the CLI and your browser should now give you a Hello World

10. Add Route for Creating Data Server Side

from flask import Flask, request

app = Flask(__name__)

@app.route("/")
def home():
    return "<p>Hello World from Flask!</p>"

wizards_list = ['Harry', 'Ron', 'Hermione']

@app.route("/wizards")
def wizards():
    name = request.args.get('name')
    if name:
      wizards_list.append(name)
    wizards_html = ''.join([f"<p>Hello {wizard} is a wizard of system design with Flask!</p>" for wizard in wizards_list])
    return wizards_html

if __name__ == '__main__':
    app.run(host='0.0.0.0', debug=True)

Now we're reading from our query string the key name and it's value. If it's there then we'll append that name to our list of wizards.

You may need to restart your server with ctrl-c and then running the app again flask run.

11. Test new endpoint

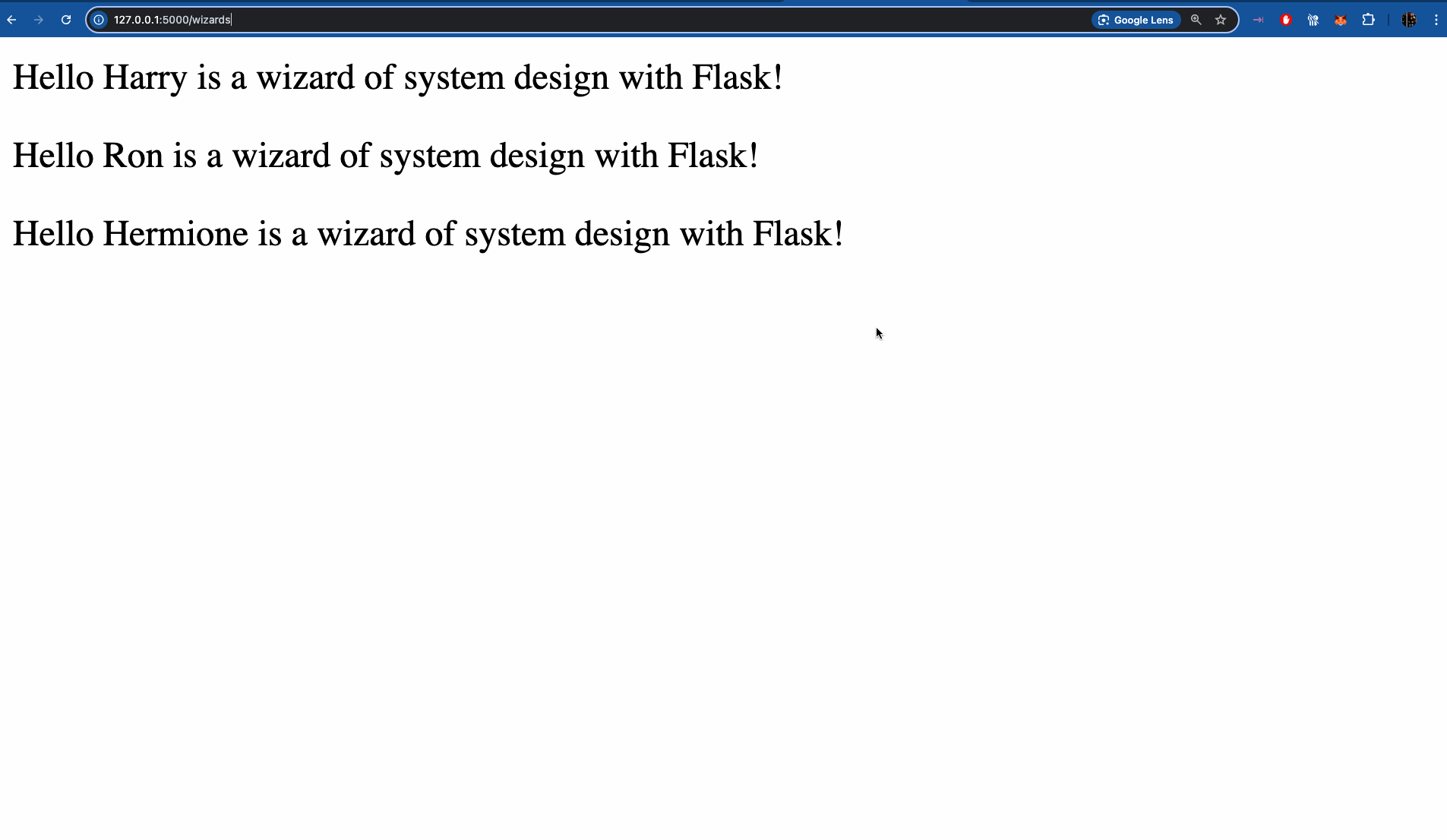

Navigate to http://127.0.0.1:5000/wizards and pass in a query param, ?name=Merlin

You should now see that Merlin is appended to our list of wizards.

12. Add JSON API Route

from flask import Flask, request, jsonify

app = Flask(__name__)

@app.route("/")
def home():
    return "<p>Hello World from Flask!</p>"

wizards_list = ['Harry', 'Ron', 'Hermione']

@app.route("/wizards")
def wizards():
    name = request.args.get('name')
    if name:
      wizards_list.append(name)
    wizards_html = ''.join([f"<p>Hello {wizard} is a wizard of system design with Flask!</p>" for wizard in wizards_list])
    return wizards_html

@app.route('/api/wizards', methods=['GET'])
def get_wizards():
    wizards = [
        {'name': 'Harry', 'house': 'Gryffindor'},
        {'name': 'Hermione', 'house': 'Gryffindor'},
        {'name': 'Ron', 'house': 'Gryffindor'},
    ]

    return jsonify(wizards)

if __name__ == '__main__':
    app.run(host='0.0.0.0', debug=True)

Now when you navigate to http://127.0.0.1:5000/api/wizards you'll get a JSON response.

Additional

Deactivate environment

Deactivate the environment when you're done working with this project so that python doesn't trip elsewhere.

deactivate

Add Hot Reload

You'll notice that if you change code and it's not reflected on browser refresh then updating an environment variable might fix the issue.

export FLASK_DEBUG=1

You'll know it works if you see Debug mode: on in your console's output.

future in ~/Documents/work/system_design_flask (venv)
$ flask run
 * Debug mode: on
WARNING: This is a development server. Do not use it in a production deployment. Use a production WSGI server instead.
 * Running on http://127.0.0.1:5000

Conclusion

Flask makes it a piece of cake to develop APIs.

We designed a Backend API using Flask in the following way

Creating & sourcing a python environment.
Defined app entrypoint app.py
Defined 3 routes.
- /: A canonical Hello World route.
- /wizards: A route for displaying a list of wizards & adding if passed a name key and it's value.
- /api/wizards: A route for returning JSON to clients which is more flexible than raw HTML.
